10 mm/ft scale
T50
LMS/BR 2-6-0 2MT driving wheels.

5′ 0″ diam., 15 oval spokes, vee shaped inner rim, apparent tread 4″.
Hub 15½″ face dia., level with the tyre, pin between at 12″.

Source: Nos 41298 and 41313 at Quainton Road in 1995.

Casting: 50.0 mm tread dia., 43.2 mm i/d., hub level with the tyre, pin at 10.0 mm.

Casting prices and stock . BR loco sets, price list, LMS loco sets, price list

Scan of castings in a set for a BR 2-6-0 2MT, LMS 2-6-0 2MT

Scan of casting T50

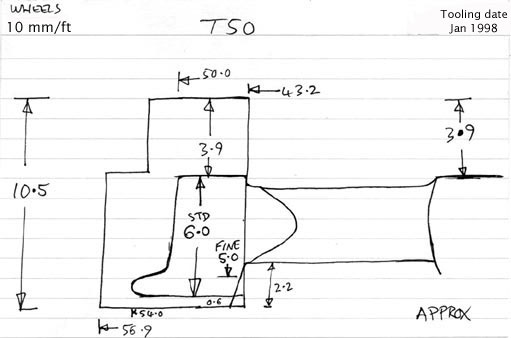

Cross section diagram of casting T50
