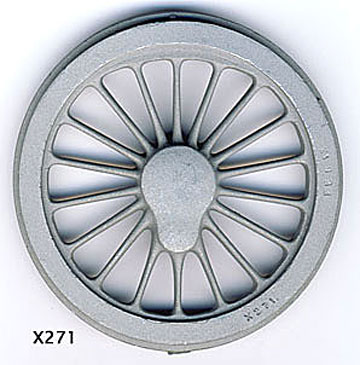

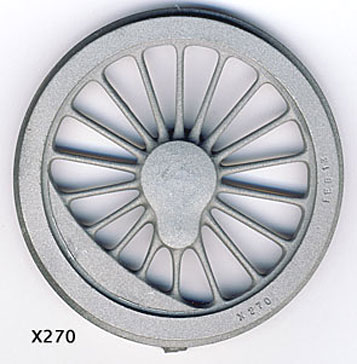

Scan of castings X270   Scan of castings X271

Scan of casting X269   Scan of casting X272

CAST IRON WHEEL CASTINGS
for MSWJR 4-4-0 Nos 1-8 & 31. At 1:22.6, 17/32″: 1 foot for Gauge 3.

A full set consists of 4 x X269 bogie, 2 x X 270 front driver, 2 x X271 rear driver and 6 x X272 tender wheels.

Sources: Mike Barnsley, Midland and South Western Junction Railway, 2 Locomotives, Wild Swan (1991).
North British Locomotive Co. works drawings: 25019 (loco) and 26560 (tender). 1906.

Suitable for the Gauge 3 Society 2010 recommended minimum tyre width of 6.8 mm, or the earlier standard of 8.0 mm.

Links:   Home.   Casting prices and stock:   Wheel data: X269, X270, 271, X272.   Gauge 3 loco set price list.

Full size for 103 dpi screens   Bare weight c. 1860 gr.
