1:22.6, Gauge 3
X270, X271
Midland and South Western Junction Railway 4-4-0 driving wheels.

5′ 9½″ diam., 18 oval spokes, rectangular rim.
Hub 16¾″ face dia., 2¼″ out from the tyre. Pin In line at 11″

Sources: Mike Barnsley, Midland and South Western Junction Railway, 2 Locomotives, Wild Swan (1991).
Works drawing: North British Locomotive Co. No 25019, Jun 1906.

Casting: 77.6 mm tread dia., 68.9 mm i/d., hub 2.5 mm above the tyre, pin at 12.4 mm

Gauge 3 loco set prices . Casting prices and stock

Scan of a casting in a set for a MSWJR 4-4-0

Scan of casting X270 Scan of casting X271

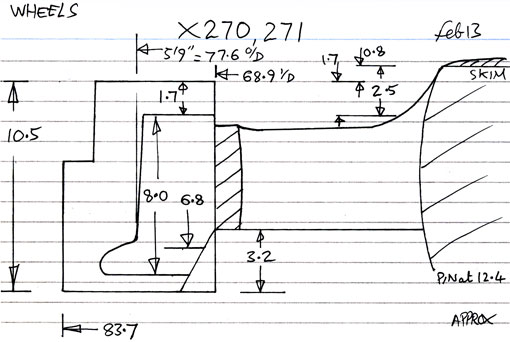

Cross section diagram for castings X270, 271
