1:22.6, Gauge 3
X269
Midland and South Western Junction Railway 4-4-0 bogie wheel.

3′ 5½″ diam., 10 oval spokes, rectangular rim.
Hub 13″ face dia., ½″ out from the tyre.

Sources: Mike Barnsley, Midland and South Western Junction Railway, 2 Locomotives, Wild Swan (1991).
Works drawing: North British Locomotive Co. No 25019, Jun 1906.

Casting: 46.6 mm tread dia., - mm i/d., hub 0.6 mm above the tyre.

Gauge 3 loco set prices . Casting prices and stock

Scan of a casting in a set for a MSWJR 4-4-0

Scan of casting X269 - Waits casting

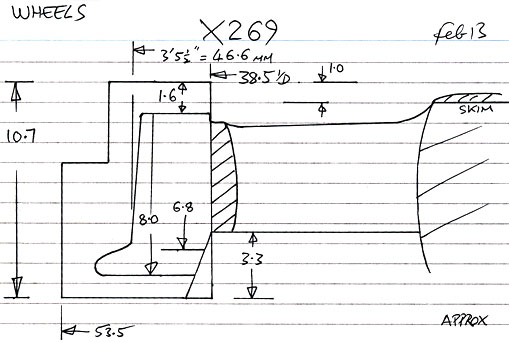

Cross section diagram for casting X269 - Waits casting
