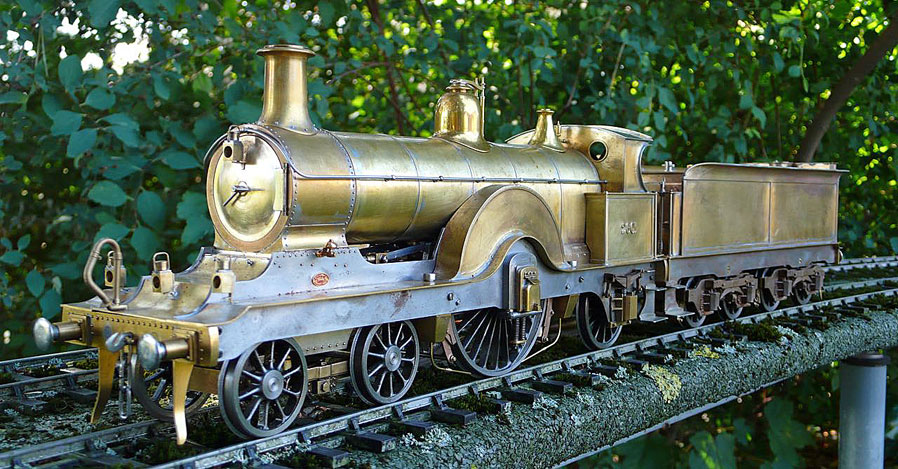

Photo of a model by Markus Neeser
M.R. 2601 class.  Model and photo by Markus Nesser



Home


Casting prices and stock:
T42 . T167 . T168 . T169


Wheel data:
T42 . T167 . T168 . T169



MR loco sets price list

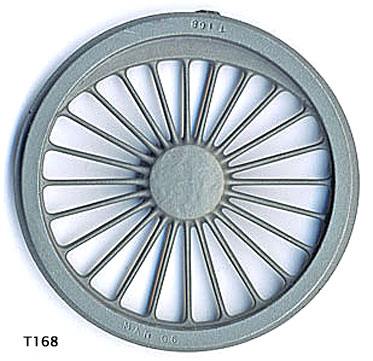

Scan of casting T167  Scan of casting T168

Scan of casting T169   Scan of casting T42










Full size for 85 dpi screens

Bare weight c. 1130 gr
CAST IRON WHEEL CASTINGS
for Midland Railway 4-2-2 Johnson 2601 class
with bogie tenders at 10 mm/ft

Complete sets consist of 4 x T167 leading, 2 x T168 driving, 2 x T169 trailing and 8 x T42 3' 6" bogie tender wheels.

Note: Midland spinners works drawing shows diameters of 3' 9½", 7' 9" and 4' 4",
by 1910 with very slightly thicker tyres these are given as 3' 10, 7' 9½" and 4' 4½"
