Casting prices and stock:
T23 . T199, 200

Wheel data:
T23 . T199, 200

LSWR loco sets price list

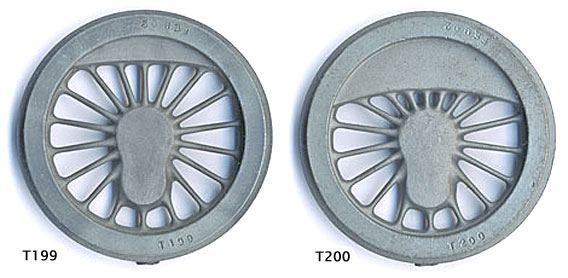

Scan of castings T199 and T200

Scan of casting T23

Full size for 85 dpi screens

Bare weight c. 1520 gr
for LSWR 4-6-0 Urie class S15 at 10 mm/ft

A full set consists of 4 x T23 leading, 4 x T199 outer, 2 x T200 mid and 8 x T23 tender wheels.

These castings have cast-in weights. Some, if not all, of the last (1936) batch had rivetted plate weights, builders will need to check to see if the correct effect can be achieved by adding them on top of these cast weights.

Suitable for Gauge One Fine or Standard
