A model made up from one of
Fred Phipps kits.

Kits from:
Fred Phipps
4a Anson Road,
London NW2 3UT.

Tel: 0203 620 6357,
e-mail: fphippsz@yahoo.co.uk

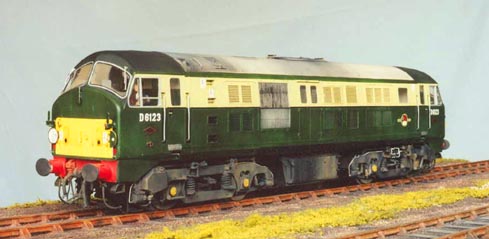

Photograph of a model

Home

Casting prices and stock: P93

Wheel data: P93

BR loco sets price list

Scan of casting P93

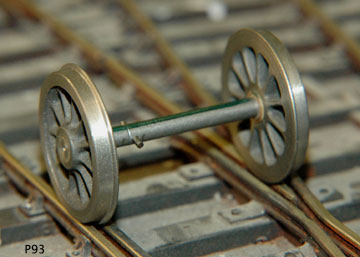

Image of machined wheels with scale profile






This set is turned to near dead-scale flange profile and 4.5 mm tyre width.

This is the profile which I use for all my own locomotives and other rolling stock for my garden railway.

CAST IRON WHEEL CASTINGS
for BR class 21/29 and 22 Diesels at 1:32

A full set of 8 of P93 castings is £97.92 plus £7.25 special delivery.
Suitable for Gauge One Fine or Standard

TURNED SETS, insulated one side and mounted on telescopic axles are £156.16 per set of 4 pairs plus £7.25 special delivery.

Deduct £2.04 if no insulation is required. Deduct £8.20 if axles are not required.

CHOOSE: Gauge One Fine, 42 mm back to back with 1.5 mm deep flange,
or Gauge One Standard, 40 mm back to back with 1.5 or 2.0 mm deep flanges
or dead scale as in the image above to your choice of back to back.
Note: Prototype 5½″ tyre width and back to back of 4′ 5 ⅝″ = 4.4 mm and 42.56 mm respectively.
