10 mm/ft scale
GWR 4-4-0 Bulldog driving wheel.

5′ 8″ diam., 18 oval spokes, rectangular inner rim, 4¼″ apparent tread.
Hub 16″ face dia., 2″ out from the tyre.

Casting: 56.7 mm tread dia., i/d 49.7 mm., hub 1.9 mm out from the tyre.

Casting prices and stock . GWR loco sets, price list

Scan of a casting in a set for a GWR Bulldog

Scan of casting T150

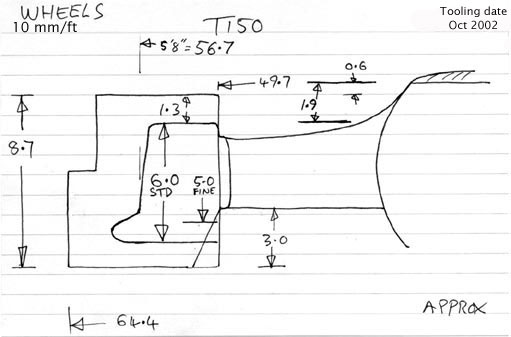

Cross section diagram of casting T150
