10 mm/ft scale
T107, T108, T109
GER 4-6-0 driving wheels.

6′ 6″ diam., 20 oval spokes, rectangular inner rim, apparent tread 4″, tyre width 5¾″.
Hub 18½″ face dia., 4″ out from the tyre, pin between at 11½″.

Source: preserved loco No 8572 at Weybourne in 1995.

Casting: 65.0 mm tread dia., 58.0 mm i/d, hub 3.3 mm out from the tyre, pin at 9.6 mm.

Casting prices and stock . GER loco sets, price list

Scan of a casting in sets for GE 4-6-0 S69/LNER B12/2

Scan of castings T107, T108 and T109

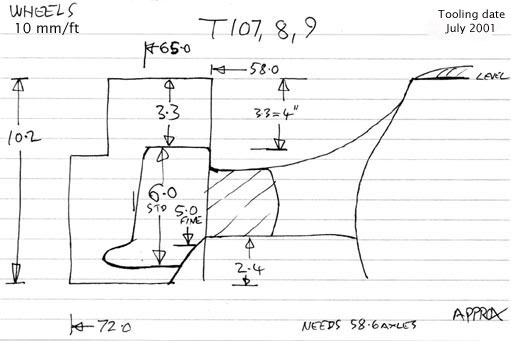

Cross section diagram of castings T107, T108 and T109
