10 mm/ft scale
T72
GWR 2-6-2T 45xx driving wheel.

4′ 7½″ diam., 14 oval spokes, rectangular inner rim, apparent tread 4″, tyre thickness 5¾″.
Hub central boss face dia. 14″, 1½″ out from the tyre, pin between at 12″.

Source: No 5553 measured direct at Loughborough in 1995.

Casting: 46.25 mm tread dia., 39.6 mm i/d., hub 1.2 mm out from the tyre, pin at 10.0 mm.

Casting prices and stock . GWR loco sets, price list

Scan of a casting in a set for GWR 2-6-2T 45xx

Scan of casting T72

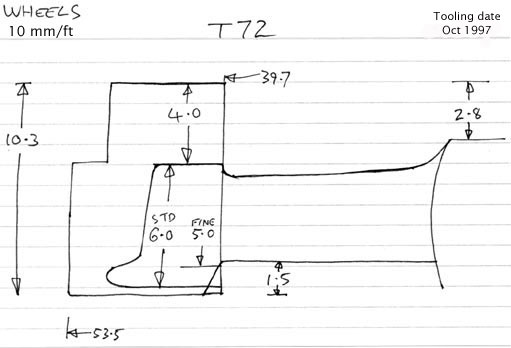

Cross section diagram of casting T72
