GWR 4-6-0 Hall later driving wheel

6′ 0″ diam., 20 oval spokes, rectangular inner rim, each side of the pin are reinforced, and central gap is filled; 4″ apparent tread.
Hub 17″ face dia., 1¼″ out from the tyre, pin between the spokes at 15″.

Source: No. 4936, Kinlet Hall measured direct in Feb 1995.

Castings: 60 mm tread diam., 52.4 i/d., hub 1.0 mm out from the tyre, boss 0.8 below the centre. Pin at 12.5 mm.

Casting prices and stock . GWR loco sets, price list

Scan of a casting in a set for a GWR 4-6-0 Hall

Scan of casting t46
Scan of a machined casting T46

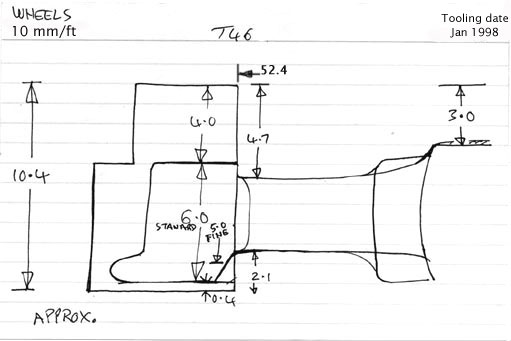

Cross section diagram for casting T46
