6′ 7″ diam., 22 oval spokes, humped inner rim, 4″ apparent tread, 6″ tyre thickness.
Hub 16 ¾″ face dia., 2½″ out from the tyre, pin in line at 9″.
Sources: Preserved T9, No 120 measured direct at the Bluebell Railway, August 1994.
(Which has weights but is otherwise similar).

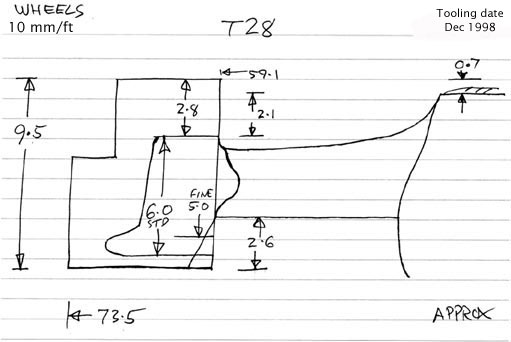

Casting: 65.8 mm tread dia., 59.1 i/d., hub 2.1 mm out from the tyre, pin at 7.5 mm.
Scan of a casting in a set for a Scan of a casting in a set for a LSWR 4-4-0 L12, D15
27 Mar 2013
