3′ 9″ diam., 11 rectangular spokes, rect inner rim, apparent tread 3½″.
Hub 13½″ face dia., ¼″ out from the tyre.

Sources: Preserved T3, No 120 measured direct at York.
South Western Circle, L. Tavender drg. of mid and rear tender wheels of preserved loco No 563, noting that the front axle has 10 spokes.

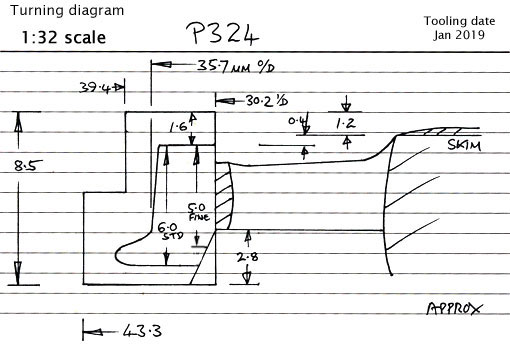

Casting: 35.7 mm tread dia., 30.2 mm i/d., hub 0.4 mm out from the tyre.

Casting prices and stock . LSWR loco sets, price list

Scan of a casting in a set for a LSWR 4-4-0 T3
