LSWR 4-6-0 S15 driving wheels.

5′ 7″ diam., 18 oval spokes, humped inner rim, apparent tread 4″.
Hub 17″ face dia., 1″ out from the tyre, pin in line at 14″.

Source: works drawing in Bradley: 152.

Castings: 53.2 mm tread dia., 46.5 mm i/d., hub 0.8 mm out from the tyre, pin at 11.1 mm.

Casting prices and stock . LSWR loco sets, price list

Scan of the castings in a set for a LSWR 4-6-0 S15

Scan of casting P199 Scan of casting P200

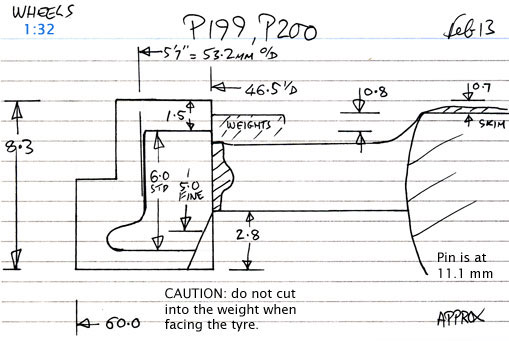

Cross section diagram of castings P199 and P200
