LSWR Drummond 6-wheel tender wheels.

4′ 0″ diam., 12 oval spokes, hump inner rim, apparent tread 4″.
Hub 12¾″ face dia., ¾″ out from the tyre.

Casting: 38.1 mm tread dia., 31.4 mm i/d, hub 0.6 mm out from the tyre.

Casting prices and stock . LSWR loco sets, price list

Scan of a casting in a set for a LSWR 4-4-0 C8 and T9

Scan of casting P181   Scan of casting P181machined

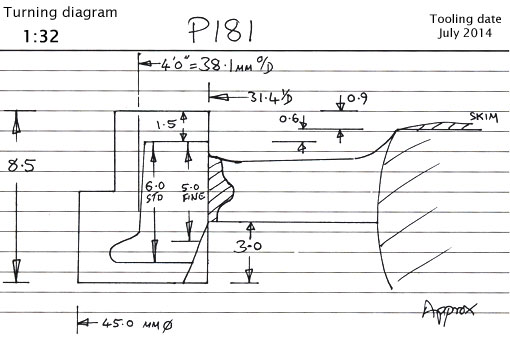

Cross section diagram of casting P181 - waits casting
