1:32 scale

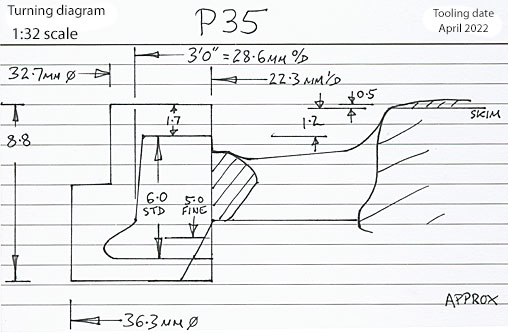

P35
LMS bogie wheel.

3′ 0″ diam., 9 oval spokes, vee inner rim, 4″ apparent tread, 6″ tyre width.
Hub 9½″ face dia., 1½″ out from the tyre.

Source: Duchess of Sutherland measured direct at Bressingham, Oct 1994.

Casting: 28.6 mm tread dia., 22.1 mm i/d, hub 1.2 mm out from the tyre.
Tyre widths for exact scale models at 1:32, 6″ = 4.76 mm.

Casting prices and stock . LMS loco sets, price list

Scan of a casting in sets for a LMS 4-6-2 Duchess class, LMS 4-6-2 Princess class

Scan of casting P35     Scan of casting P35 to G1S

Photo of Duchess bogie

Cross section diagram of casting P35

Cross section diagram of casting P35 for G1S

Diagram of safe areas to be removed before machining with a form tool for Gauge One Standard standard
