Scan of casting X74

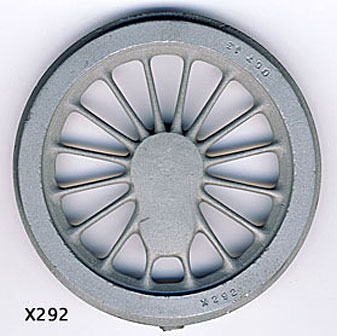

Scan of casting X292

Scan of casting X60

for BR 2-6-0 Riddles 3MT or 4MT for Gauge 3 at 1:22.6, 17/32″: 1 foot.

A full set consists of 2 x X74 leading, 6 x X292 driving, and 6 x X60 tender wheels.

The prototype driving wheel weights are surface mounted plates, and are not cast in.

Suitable for the Gauge 3 Society 2010 recommended minimum tyre width of 6.8 mm, or the earlier standard of 8.0 mm.

Links:   Home.   Casting prices and stock: X60, X74, X292.   Wheel data: X74, X292, X60.   Gauge 3 loco sets price list.

Full size for 103 dpi screens.   Bare weight c. 1720 gr.

Photo of BR 2-6-0 3MT
Photo of BR 2-6-0 3MT
Photo of BR 2-6-0 3MT

Pony wheel

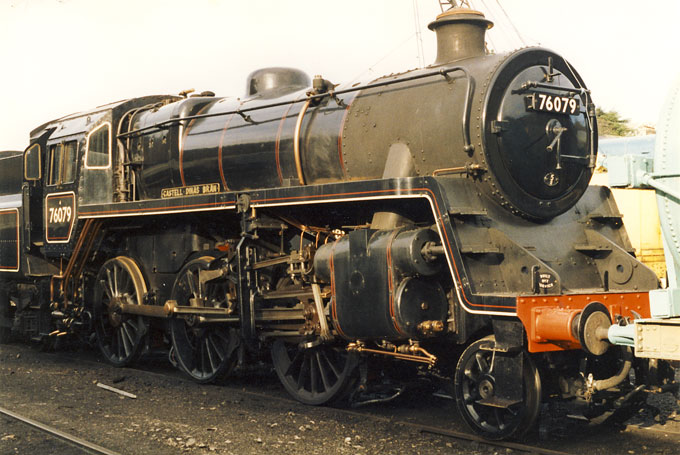

BR 2-6-0 No 76079 at Llangollen in February 1995.
