1:22.6, Gauge 3
X292
LMS/BR driving wheel.

5′ 3″ diam., 16 oval spokes, vee shaped inner rim, apparent tread 3½″, tyre width 5⅜″.
Hub 16″ face dia., ⅛″ out from the tyre. Pin between at 13″.

Source: BR 2-6-0 No 76079 built at Horwich in 1957, measured direct at Llangollen in Feb. 1995.

Casting: 70.8 mm tread dia., i/d 62.5 mm., hub 1.15 mm out from the tyre.

Gauge 3 loco set prices . Casting prices and stock

Scans of a casting in sets for: LMS 2-6-0 Ivatt 4MT,   LMS 2-6-2T Stanier 3P,   BR 2-6-0 Riddles 4MT,
and BR 2-6-2T Riddles 3MT

Scan of pattern X292

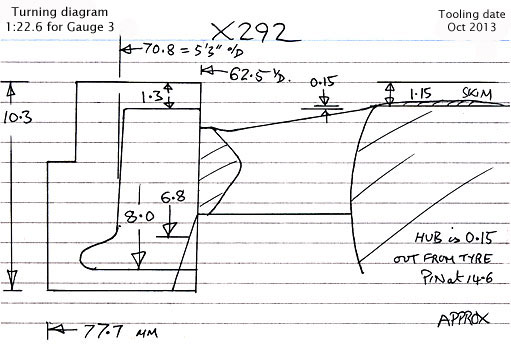

Cross section diagram of casting X292


Photo of BR 2-6-0 3MT

BR 2-6-0 No 76079 at Llangollen in February 1995.
