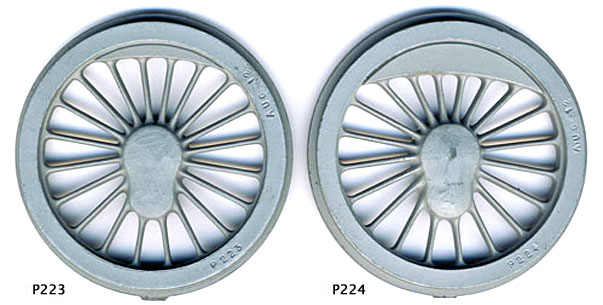

Scan of castings P223 and P224

Scan of casting P98   Scan of casting P43








Full size for 85 dpi screens

Bare weight c. 1250 gr
CAST IRON WHEEL CASTINGS
for LBSCR 4-4-2 H1, H1 Marsh Atlantics at 1:32

A full set consists of 6 x P98 bogie and trailing, 2 x P223 front and 2 x P224 rear driving wheels and 6 x P43 tender wheels.

Suitable for Gauge One Fine or Standard

The driving wheel hubs are made in the expectation that coupling rod pins will be cranked out 1" as in the prototype.

CYLINDER BLOCK CASTINGS in gun metal, see under misc parts.

WORKS DRAWINGS: There are several at York. Drawing No 2/GW/8130/E is a particularly clear drawing of the superheated class H2, plan and side elevation. Copies from The National Railway Museum, Leeman Road, York. YO26 4XJ. Tel: 01904 621 261 for order form, or download it from the web.
