1:22.6, Gauge 3
X32, X33
GER 2-4-0 T26/LNER E4 and 2-4-2T C32/LNER F3 driving wheels.

5′ 8″ diam., 16 oval spokes, slightly humped inner rim, apparent tread 4½″.
Hub 15½″ face dia., 3″ out from the tyre, pin in line at 11″.

Source: preserved locomotive No 490 measured direct at Bressingham in 1994.

Casting: 76.4 mm tread dia., 65.8 mm i/d., hub 3.4 mm above the tyre, pin at 12.14 mm.

Gauge 3 loco set prices . Casting prices and stock

Scans of castings in sets for: GER T26/LNER E4 with prototype photos., GER C32/LNER F3

Suitable for the Gauge 3 Society 2010 minimum tyre width of 6.8 mm, or the earlier standard of 8.0 mm.

Scan of castings X32 and X33

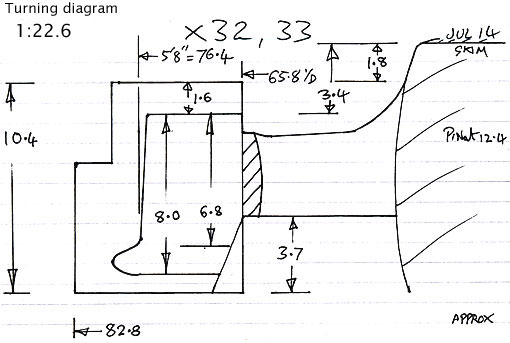

Cross section diagram of castings X32 and X33
