1:22.6, Gauge 3
X31
GER tender wheel.

4′ 0″ diam., 10 oval spokes, inner rim has a low hump shape, apparent tread 5″, tyre width 5½″.
Hub 10½″ face level with the tyre.

Source: tender with the preserved Y14/J15 at Weybourne measured direct in September 1994.

Casting: 55.1 mm tread dia., 42.6 i/d., hub level with the tyre.

Gauge 3 loco set prices . Casting prices and stock

Scan of a casting in sets for GER T26/LNER E4 . GER C32/LNER F3

Scan of casting X31

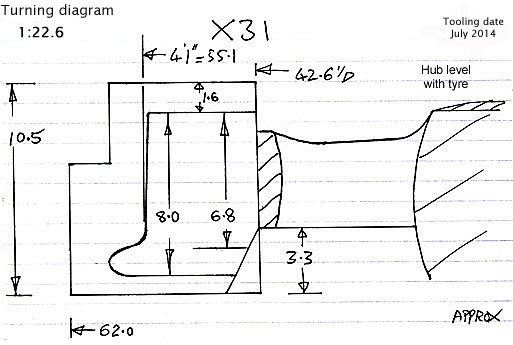

Cross section diagram of casting X31
