10 mm/ft scale
T128, T129
GE 4-4-0 T19R/LNER D13 driving wheels.

7′ 0″diam., 20 oval spokes, rectangular inner rim, apparent tread 4½″.
Hub 15″ face dia., 3½″ out from the tyre, pin in line at 12″.

Casting: 70.0 mm tread dia., 62.8-63.0 i/d., hub 2.4 mm out from the tyre, pin at 10.0 mm.

Casting prices and stock . GER loco sets, price list

Scan of the castings in a set for a GE 4-4-0 T19R/LNER D13

Scan of castings T128 and T129

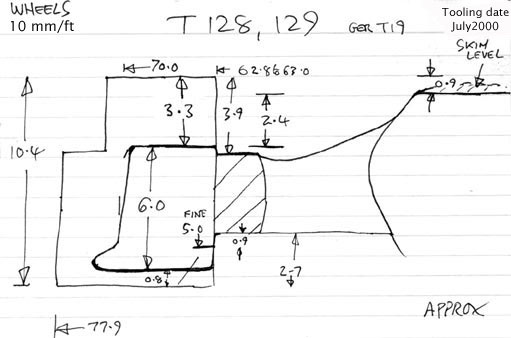

Cross section diagram of castings T128 and T129
