10 mm/ft scale
CR 4-6-2T 944 class trailing wheel.

3′ 6″ diam., 12 oval spokes, rectangular inner rim, apparent tread 4½″.
Hub 13½″ face dia., 1″ out from the tyre.

Casting: 35.0 mm tread dia., 27.4 mm i/d., hub 0.8 mm out from the tyre.

Casting prices and stock . CR loco sets, price list

Scan of a casting in a set for a CR 4-6-2T 944 class

Scan of casting T116

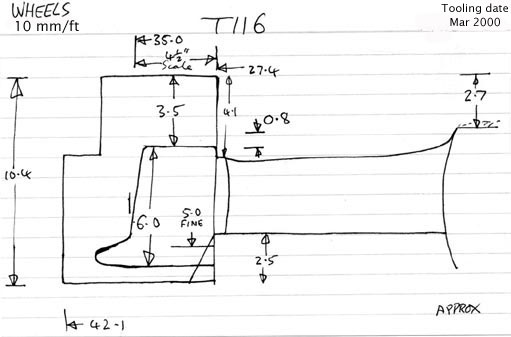

Cross section diagram of casting T116
