1:32 scale
LNWR Webb tank 2-4-2T carrying wheels.

3′ 3″ diam., 10 rect spokes, rectangular inner rim, apparent tread 4″.
Hub 14½″ face dia., 1½″ out from the tyre.

Castings: 31.0 mm tread dia., 24.6 mm i/d., hub 0.8 mm out from the tyre.

Casting prices and stock . LNWR loco sets, price list

Scan of castings in a set for a LNWR 2-4-2T Webb tanks

Scan of casting P378

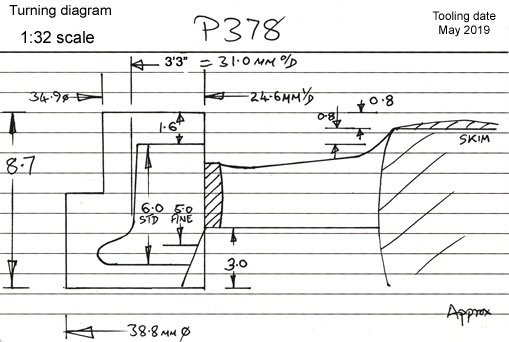

Cross section diagram for casting P378
