1:32 scale
P346, 347
LBSC 2-6-0 Billinton K class driving wheels.

5′ 6″ diam., 18 oval spokes, rectangular inner rim, apparent tread 4″.
Hub 18½″ face dia., 1″ out from the tyre, pin between at 13″.

Castings: 52.4 mm tread dia., 46.0 mm i/d., hub 0.8 mm out from the tyre, pin at 10.3 mm.

Casting prices and stock . LBSC loco sets, price list

Scan of castings in a set for a LBSC 2-6-0 Billinton K class

Scan of casting P346   Scan of casting P347

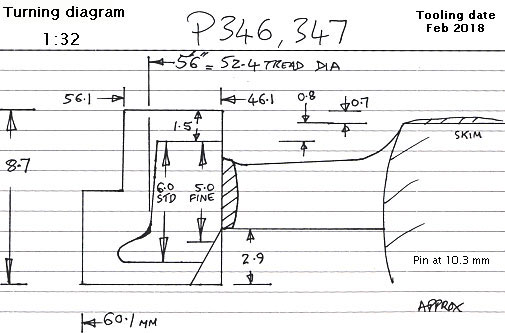

Cross section diagram for casting P346
