Canadian Pacific 2-8-0 Baldwin SG driving wheel.

4′ 1″ diam., 13 oval spokes, high hump inner rim, pin between at 12″.
Casting: 38.9 tread dia., 33.3 i/d, hub 2.4 mm out from the tyre, pin at 9.5 mm.

Casting prices and stock . Canada loco sets, price list

Loco set information

Scan of casting P257

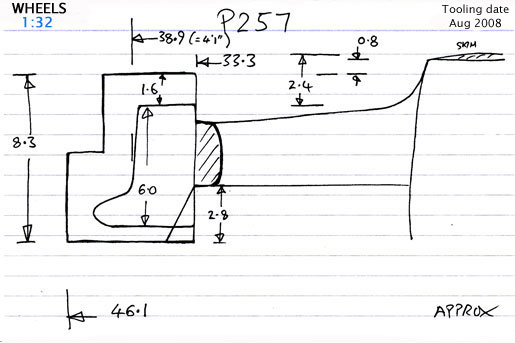

Cross section diagram of casting P257
