Netherlands SS700/NS3700 class 4-6-0 bogie wheels.

3′ 0″ (915 mm) diam., 8 oval spokes, rectangular inner rim. Apparent tread 3½″, tyre width 145 mm.
Hub 13″ (330 mm) face dia., 23.3 i/d., 15 mm out from the tyre.

Sources: works drawing for left hand drive Nos 695-766, photographs.

Casting: 28.6 mm tread dia., hub 0.5 mm out from the tyre.
Tyre width for scale modellers: 4.53 mm.

Casting prices and stock . Netherlands, loco sets, price list

Scan of a casting in a set for a Netherlands SS700/NS3700 class 4-6-0

Scan of casting P252

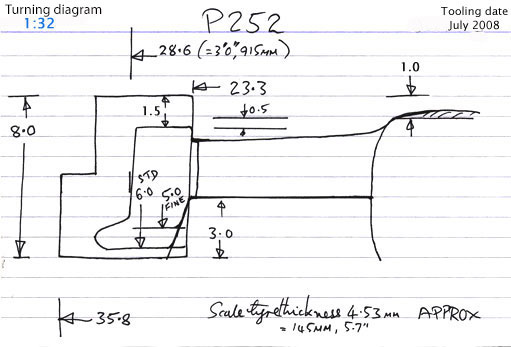

Cross section diagram of casting P252
