1:32 scale
German 4-6-4T Class BR 62 bogie wheels.

2′ 9½″ diam., 7 oval spokes.
Hub 12″ face dia., 1¼″ out from the tyre.

Casting: 26.6 mm tread dia., 20.9 mm i/d., hub 1.0 mm out from the tyre.

Casting prices and stock . Germany loco sets, price list

Scan of castings in a set for a German 4-6-4T Class 62

Scan of casting P158

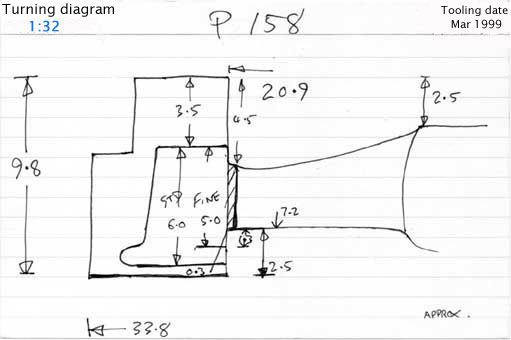

Cross section diagram of casting P158
