1:16, 3½″ gauge
Solid spoke wagon wheel.

3′ 1″ diam., 8 oval spokes, rectangular inner rim, 2½″ apparent tread.
Hub 13″ diam, 1″ out from the tyre.

Source: L. Tavender, Coal Trade Wagons page 16.

Casting: 58.7 mm tread dia., - i/d., hub 1.6 mm out from the tyre.

Suitable for scale or for 10.3 mm tyre widths.

3½″ Gauge Price list . Casting prices and stock

Set information

Scan of casting N16

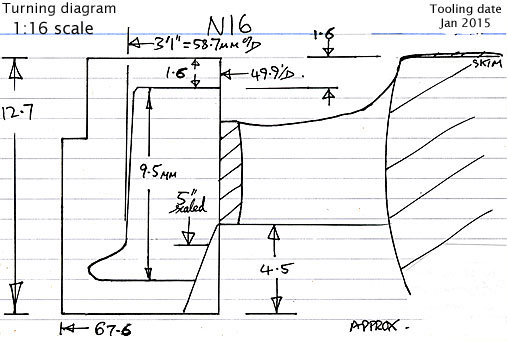

Cross section diagram of casting N16
