1:16, 3½″ gauge
N15
Split spoke wagon wheel. Railway Clearing House dimensions for 8 and 10 ton wagons.

3′ 1″ diam., 8 split spokes, rectangular inner rim, 2½″ apparent tread.
Hub 13″ diam, 1″ out from the tyre.

Source: L. Tavender, Coal Trade Wagons page 9.

Casting: 58.7 mm tread dia., 50.05 i/d., hub 1.2 mm out from the tyre.

Suitable for scale or for 10.3 mm tyre widths.

3½″ Gauge Price list . Casting prices and stock

Set information

Scan of casting N15

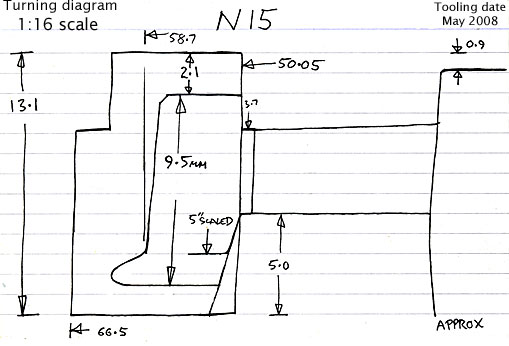

Cross section diagram of casting N15
