Plain wheels for the SAR 2-8-4 class 24.

2′ 6″ diam., disc wheels.
Hub 10″ face dia., ½″ out from the tyre.

Casting: 31.75 mm dia., 24.2 i/d., hub 0.5 mm out from the tyre.

Narrow gauge loco set prices . Casting prices and stock

Scan of a casting in a set for a SAR class 24.

Castings H333

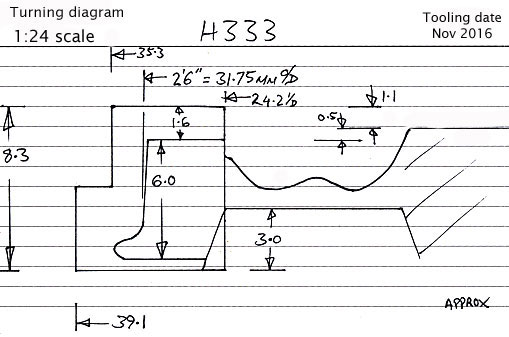

Cross section diagram of casting H333
