1:24 scale
H329, H330, and H331
SAR 2-8-4 class 24

4′ 3″ diam., 14 oval spokes, rectangular inner rim.
Hub 14¼″ face dia., 1 ¾″ out from the tyre, pin between at 13″.

Casting: 54.0 mm tread dia., 45.9 mm i/d., hub 1.8 mm out from the tyre, pin at 13.8 mm.

Source: Works drawings.

Narrow gauge loco set prices . Casting prices and stock

Casting H329   Casting H330   Casting H331

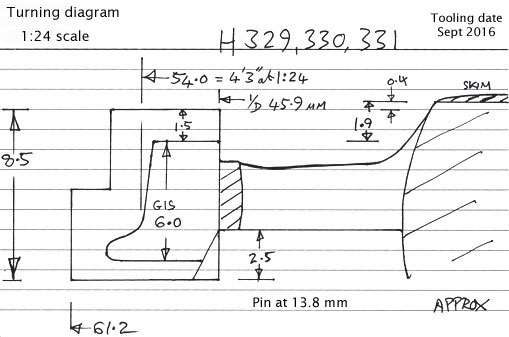

Cross section diagram of castings H329-331
