7 mm/ft scale
B38
L.M.S. Tender wheel, suitable for Black Five, Duchess etc.

4′ 3″ diam., 12 oval spokes, vee inner rim, 4″ apparent tread, 6″ tyre width.
Hub 16″ dia., ½″ out from the tyre.

Source: Duchess of Sutherland measured direct at Bressingham, Oct 1994.

Casting: 29.75 mm tread dia., 25.0 mm i/d., 0.3 mm out from the tyre.

Casting prices and stock . LMS loco sets, price list

Scan of a casting in sets for a LMS 4-6-2 Duchess class, LMS 4-6-0 Jubilee class.

Scan of casting B38

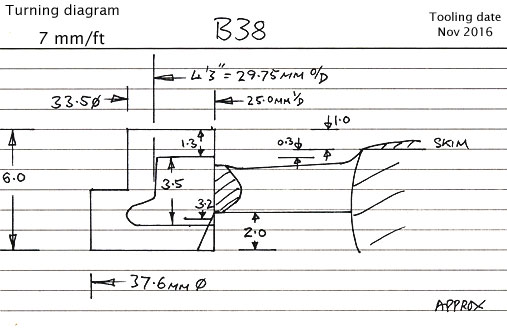

Cross section diagram of casting B38
