7 mm/ft scale
LMS 4-6-2 Duchess class driving wheel.

6′ 9″ diam., 21 oval spokes, vee inner rim, 4″ apparent tread, 5½″ tyre width.
Hub 20½″ face dia, 2″ out from the tyre, pin between at 14″.

Source: Duchess of Sutherland measured direct at Bressingham, Oct. 1994.

Casting: 47.3 mm tread dia., 42.3 mm i/d, hub 1.1 mm out from the tyre, pin at 8.2 mm.
Tyre widths for exact scale models at 7 mm/ft, 5½″= 3.21 mm.

Casting prices and stock . LMS loco sets, price list

Scan of a casting in sets for a LMS 4-6-2 Duchess class

Scan of casting B37

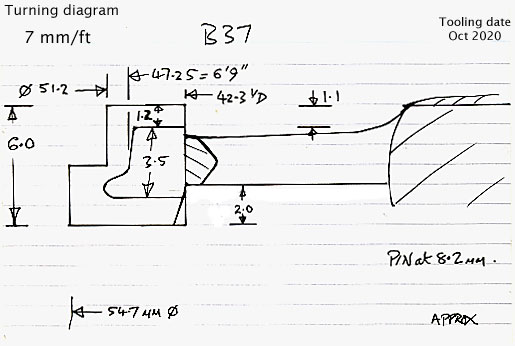

Cross section diagram of casting B37
This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For Scale7 remove more metal from the back of the wheel to give a tyre thickness of 3.2 mm instead of 3.5 mm.
