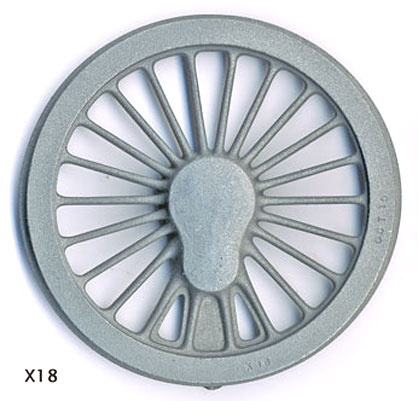

Scan of casting X19 Scan of casting X18 Scan of casting X20
CAST IRON WHEEL CASTINGS
for GWR 4-6-0 King at 1:22.6, 17/32″: 1 foot for Gauge 3.


A full set consists of 4 x X19 leading, 6 x X18 driving, and 6 x X20 tender wheels.

Suitable for the Gauge 3 Society 2010 recommended minimum tyre width of 6.8 mm, or the earlier standard of 8.0 mm.

The prototype driving wheel weights are surface mounted plates, and are not cast in.

Links:   Home.   Casting prices and stock.   Wheel data: X18, X19, X20.   Gauge 3 loco sets price list.

Full size for 103 dpi screens.   Bare weight c. 2,400 gr.
