Casting prices and stock:
X73 . X74


Wheel data: X73 . X74


Gauge 3
loco sets price list
Scan of casting X74   Scan of casting X73






Full size for 85 dpi screens

Bare weight
c. 1,620 gr


Turned set inc parcel
1,200 gr.
CAST IRON WHEEL CASTINGS
for BR 2-6-4T 4MT 80000, at 1:22.6, 17/32″: 1 foot for Gauge 3


A full set consists of 6 x X74 leading and trailing wheels, 6 x X73 driving wheels.

Suitable for the Gauge 3 Society 2010 recommended minimum tyre width of 6.8 mm, or the earlier standard of 8.0 mm. Pins are threaded M3.

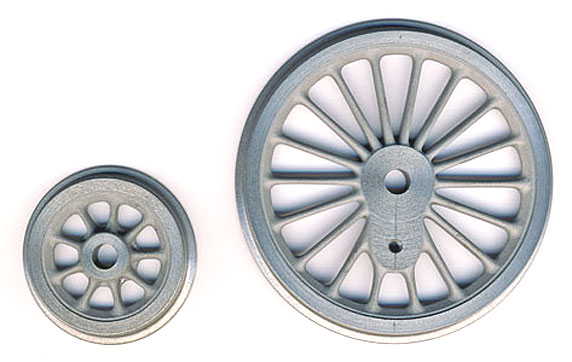

Photo of machined wheeles, G3 Standard

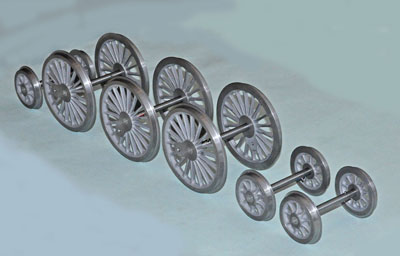

Photo of a set of machined wheels, G3 standard
Photo of machined wheeles, G3 Standard
Castings machined with G3 standard flanges, and wheel width through the tyre of 6.8 mm. Pins are threaded M3.

Photo of a prototype driving wheel
Photo of a prototype bogie wheel
80151 at Chappel in 1995.
