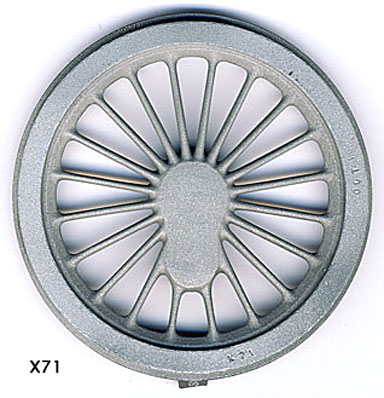

Scan of casting X74  Scan of casting X71   Scan of casting X60

Home       Casting prices and stock: X60 . X71 . X74       Wheel data: X60 . X71 . X74       BR loco sets price list

CAST IRON WHEEL CASTINGS
for BR 4-6-2 Britannia and Duke and for the 4-6-0 class 5MT for Gauge 3 at 1:22.6

4-6-2 sets consist of 4 x X74 leading, 6 x X71 driving and 8 x X60 trailing and tender wheels.
4-6-0 sets consist of 4 x X74 leading, 6 x X71 driving and 6 x X60 tender wheels.
Bare weights: Brit: c. 2,240 gr.   5MT c. 2,060 gr.

The prototype driving wheel weights are surface mounted plates, and are not cast in.
Dimensions from No 70013 measured at Bressingham in 1995

Suitable for 8.0 or 6.8 mm wide tyres.
