1:22.6, Gauge 3
Industrial Loco. Stephenson and Hawthorn 0-4-0ST Agecroft No 3

3′ 6″ diam., 10 oval spokes, weights cast-in level with the inner rim, apparent tread 2½″.
Hub 11½″ face dia., 1¼″ out from the tyre, pin between at 9″.

Sources: customer's measurements and photographs.

Casting: 47.2 mm tread dia., 41.2 mm i/d., hub 1.4 mm out from the tyre, pin at 10.1 mm.

Gauge 3 loco set prices . Casting prices and stock

Suitable for the Gauge 3 Society 2010 minimum tyre width of 6.8 mm, or the earlier standard of 8.0 mm.

Scan of casting X283

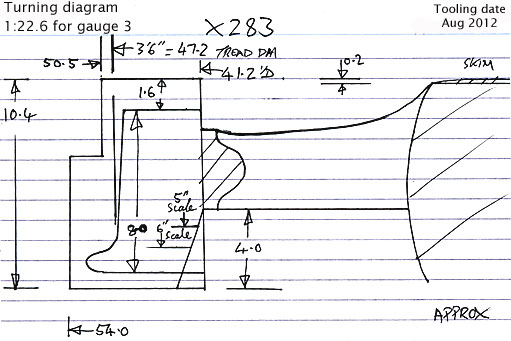

Cross section diagram of casting X283
