1:22.6, Gauge 3
X151
GWR 0-4-2T 48xx class driving wheel.

5′ 2″ diam., 16 oval spokes, rectangular inner rim, 5¾″ tyre width, 4¼″ apparent tread.
Hub 14″ face dia., 1⅜″ out from the tyre, pin between at 10″.
Tyre width for scale models: 4.56 mm.

Source: works drawings for the 1400 class, lots 279, 287 and 288.

Casting: 69.7 mm tread dia., 60.7 mm i/d., hub 1.5 mm out from the tyre, pin at 11.24 mm.

Gauge 3 loco set prices . Casting prices and stock

Scan of a casting in sets for GWR 0-4-2T 14xx .

Suitable for the Gauge 3 Society 2010 minimum tyre width of 6.8 mm, or the earlier standard of 8.0 mm.

Scan of casting X151

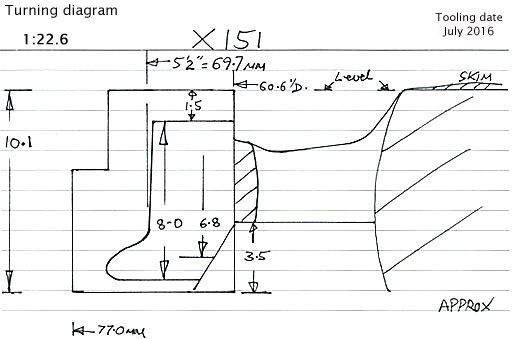

Cross section diagram of casting X151
