1:22.6, Gauge 3
X51
LMS tender wheel.

3′ 6½″ diam., 10 oval spokes, vee shaped inner rim, apparent tread 4″.
Hub 13″ face dia., ½″ out from the tyre.

Casting: 47.8 mm tread dia., i/d 38.8 mm., hub 0.6 mm out from the tyre.

Gauge 3 loco set prices . Casting prices and stock

Scan of a casting in sets for a LMS 2-6-0 Ivatt 4MT

Scan of casting X51

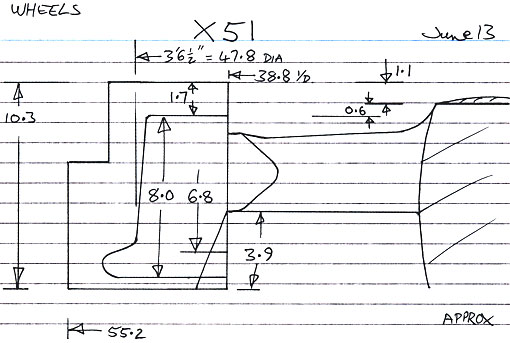

Cross section diagram of casting X51
