1:22.6, Gauge 3
X29, X30
GER 0-6-0 Y14/LNER J15 Passenger loco driving wheels.

Suits the last 40 locos built.

4′ 11″ diam., 15 oval spokes, slightly humped rim, apparent tread 5″.
Hub 14½″ face dia., 2⅛″ above the tyre, pin in line at 12″.

Source: preserved loco No 564 measured direct at Weybourne in September 1994.

Casting: 66.3 mm tread dia., 54.9 mm i/d., hub 2.4 out from the tyre, pin at 13.5 mm.

Gauge 3 loco set prices . Casting prices and stock

Scan of castings in a set for a GER 0-6-0 Y14/LNER J15 with prototype photographs.

T30 is also the outer driving wheel for GER 0-4-4T S44/LNER G4 and the GER 0-6-0 N13/LNER J14

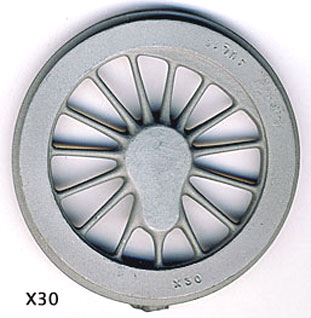

Scan of casting X29   Scan of casting X30

Cross section diagram of casting X29 and X30
