5 inch gauge
V206, V207
GC 0-6-0 9J/LNER J11 driving wheels.

5′ 2″ diam., 15 oval spokes, rectangular inner rim, apparent tread 4½″.
Hub 16″ face dia., 2″ out from the tyre, pin between at 11″.

Source: works drawings.

Castings: 139.5 mm tread diam., 118.3 mm i/d., hub 4.5 mm out from the tyre, pin at 24.75 mm.

Casting prices and stock

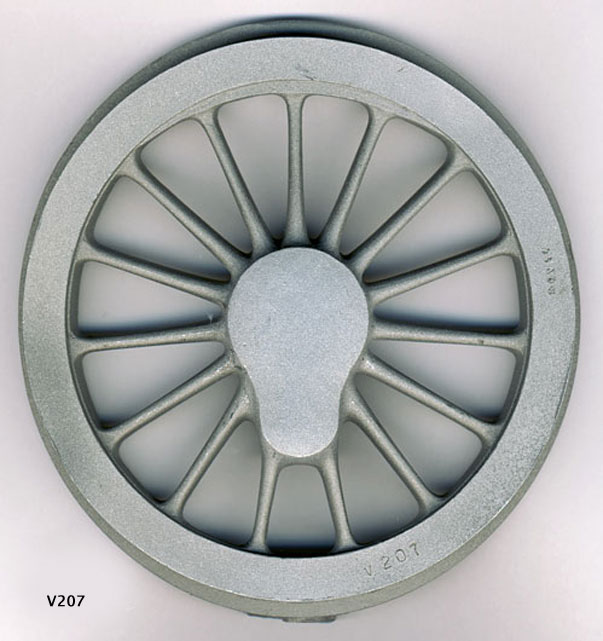

Scan of castings V206 and V207

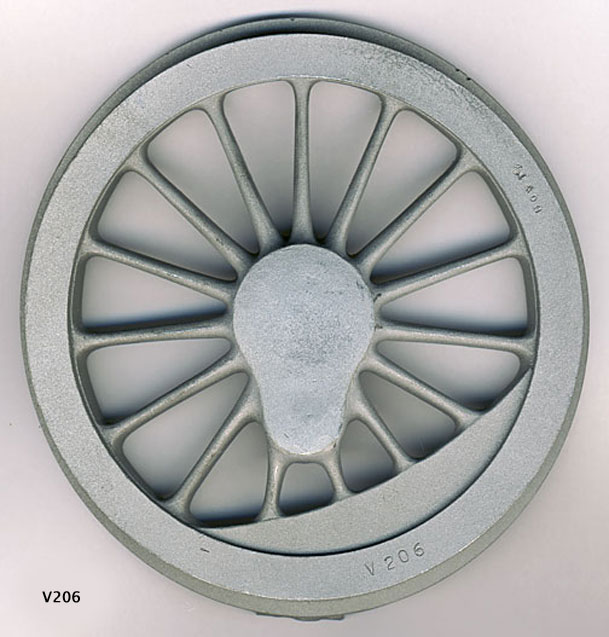

Scan of castings V206 and V207

Cross section diagram of castings V206 and V207
