1:8 scale
S454
Trailing disc wheels for the SAR 2-8-4 class 16E.

2′ 10″ diam., disc wheel. Tyre width 5″.
Hub 14″ face dia., ½″ out from the tyre.

Source: works drawing.

Casting: 108 mm tread dia., 88.9 mm i/d., hub 1.6 mm out from the tyre.

Narrow gauge loco set prices . Casting prices and stock

Scan of a casting in a set for a SAR class 16E

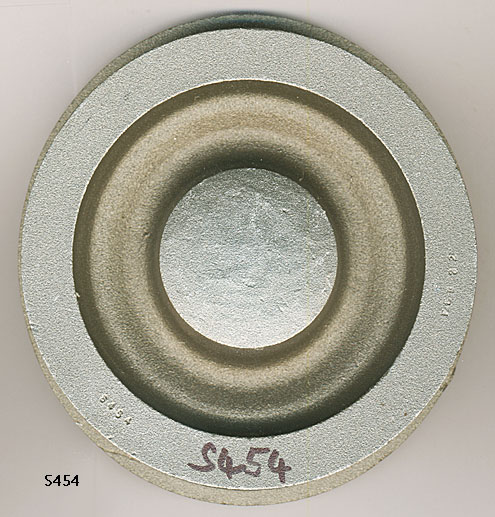

Scan of casting S454

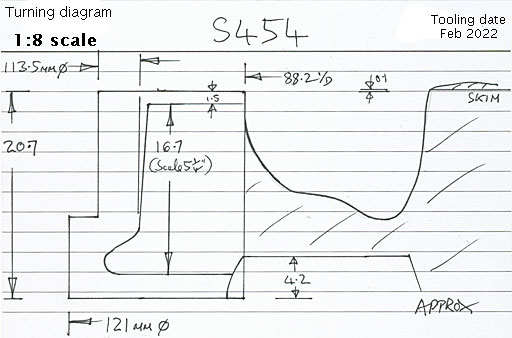

Cross section diagram of casting S454
