6′ 0″ diam., 19 oval spokes. Tyre width 5″.
Coupled wheels hub 14″ face dia., 1¼″ out from the tyre.
Driven wheels hub 16½″ face dia,, level with the tyre.

Source: works drawings.

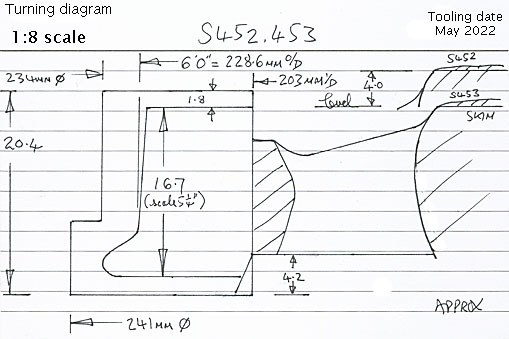

Casting: 229 mm tread dia., 195 mm i/d., hub level (driven) or 4.0 mm (coupled), out from the tyre.

Narrow gauge loco set prices . Casting prices and stock

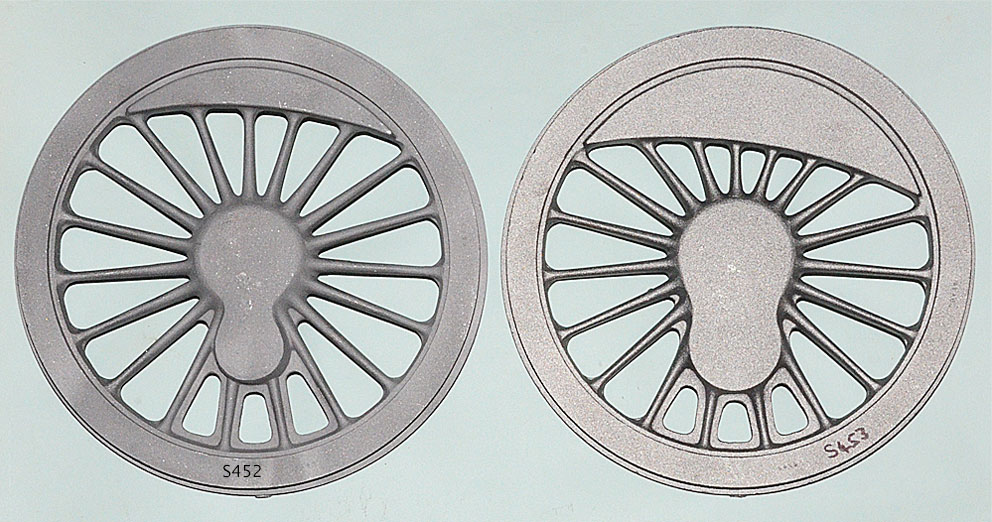

Scan of a casting in a set for a SAR class 16E
