1:12 scale
M422, M423
Driving wheels for the RR/NRZ 15th class.

4′ 9″ diam., 14 oval spokes, rectangular inner rim.
Hub 13¾″ face dia., 1¼″ out from the tyre.

Source: works drawings.

Casting: 120.7 mm dia., 104.8 i/d., hub 2.6 mm out from the tyre.

Narrow gauge loco set prices . Casting prices and stock

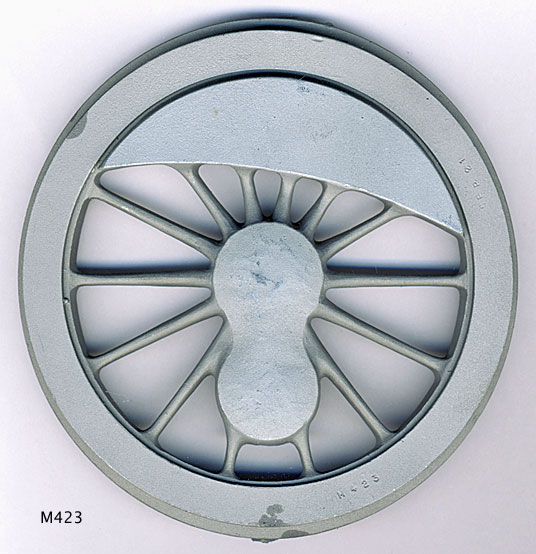

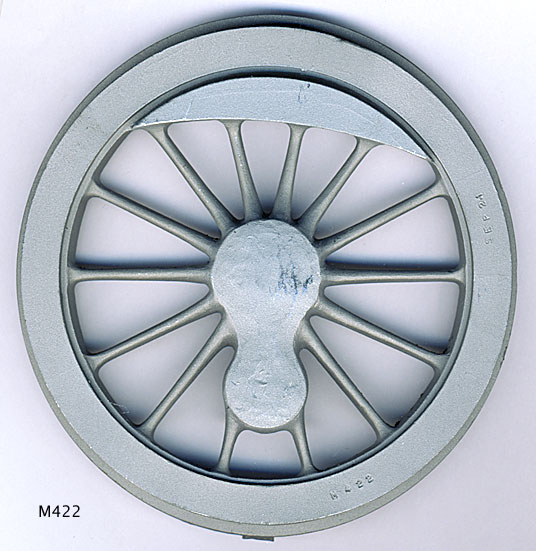

Scan of a casting in a set for a NRZ/RR 4-6-4+4-6-4 15th class,

Castings M422 Castings M423

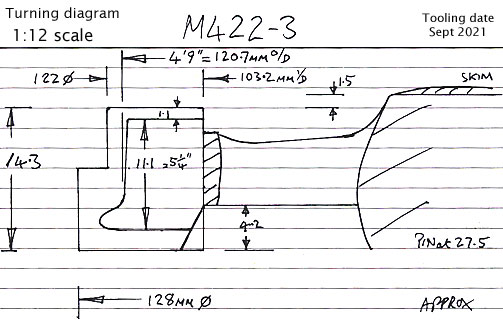

Cross section diagram of casting M422
