1:12 scale
Plain wheels for the NRZ/RR 4-6-4+4-6-4 15th class.

2′ 9″ diam., 8 oval spokes, rectangular inner rim. Tyre width 5¼″.
Hub 11″ face dia., ½″ out from the tyre.

Source: works drawing.

Casting: 69.9 mm dia., 55.0 i/d., hub 1.1 mm out from the tyre.

Narrow gauge loco set prices . Casting prices and stock

Scan of a casting in a set for a NRZ/RR 4-6-4+4-6-4 15th class,

Castings M421

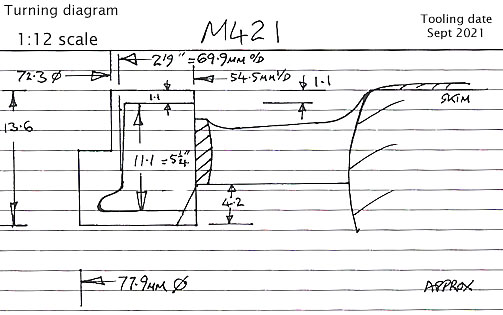

Cross section diagram of casting M421
