2′ 6″ diam., 8 oval spokes, rounded hump rim, 1½″ tread.
Hub 1½″ out from the tyre, pin in line at 9¼″.

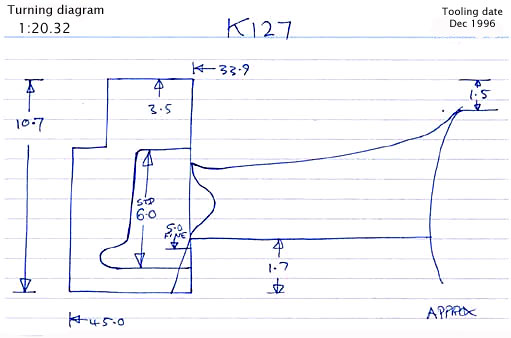

Casting: 37.5 mm tread diam., 33.9 i/d., tyre 2.0 below the hub, pin at 11.6 mm.
