1:24 scale
Driving wheels for the SAR Bo Bo electric E5/6 classes.

4′ 0″ diam., 13 oval spokes, rectangular inner rim.
Hub 16″ face dia., ½″ out from the tyre.

Casting: 50.8 mm dia., 42.8 i/d., hub 0.5 mm out from the tyre.

Narrow gauge loco set prices . Casting prices and stock

Scan of a casting in a set for a RR Bo Bo E5/E6 classes.

Castings H433

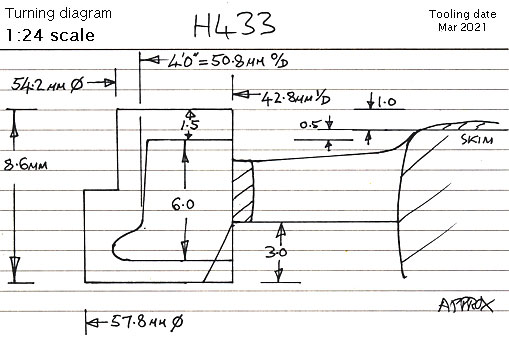

Cross section diagram of casting H433
