1:24 scale
H422, H423
Driving wheels for the NRZ/RR 4-6-4+4-6-4 15th class.

4′ 9″ diam., 14 oval spokes, rectangular inner rim.
Hub 13¾″ face dia., 1¼″ out from the tyre. Pin between at 13″.

Casting: 60.3 mm dia., 52.4 i/d., hub 1.3 mm out from the tyre.

Narrow gauge loco set prices . Casting prices and stock

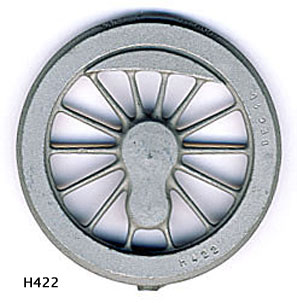

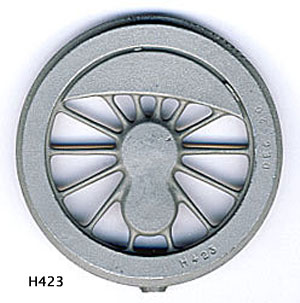

Scan of a casting in a set for a NRZ/RR 4-6-4+4-6-4 15th class,

Castings H422 Castings H423

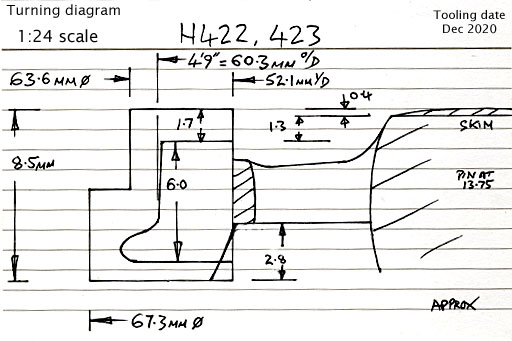

Cross section diagram of casting H422
