1:24 scale
H421
Plain wheels for the NRZ/RR 4-6-4+4-6-4 15th class.

2′ 9″ diam., 8 oval spokes, rectangular inner rim.
Hub 11″ face dia., ½″ out from the tyre.

Casting: 34.9 mm dia., 27.5 i/d., hub 0.5 mm out from the tyre.

Narrow gauge loco set prices . Casting prices and stock

Scan of a casting in a set for a NRZ/RR 4-6-4+4-6-4 15th class,

Castings H421

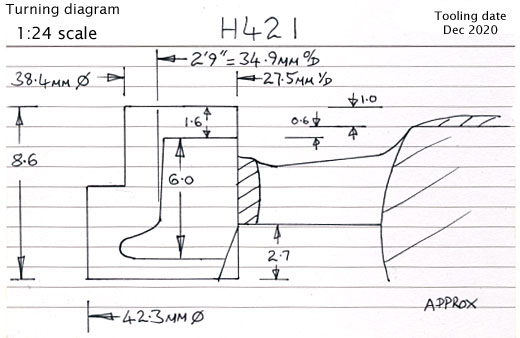

Cross section diagram of casting H421
